Dennis Brothers, Limited, Introduces a New and very Practical Motor for Agriculture, Irrigation, and General Purposes.

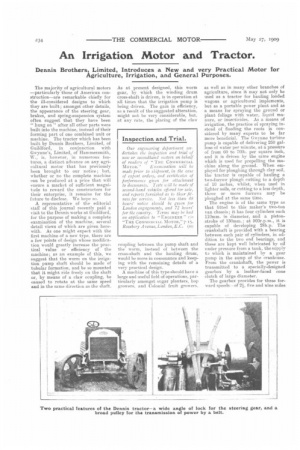

The majority of agricultural motors —particularly those of American construction—are remarkable chiefly for the ill-considered designs to which they are built; amongst other details, the appearance of the steering gear, brakes, and spring-suspension system often suggest that they have been " hung on " after all other parts were built into the machine, instead of their forming part of one combined unit or machine. The tractor which has been built by Dennis Brothers, Limited, of Guildford, in conjunction with Gwynne's, Limited, of Hammersmith, W., is, however, in numerous features, a distinct advance on any agricultural motor that has previously been brought to our notice ; but, whether or no the complete machine can be produced at a price that will ensure a market of sufficient magnitude to reward the constructors for their enterprise, it remains for the future to disclose. We hope so.

A representative of the editorial staff of this journal recently paid a visit to the Dennis works at Guildford, for the purpose of making a complete examination of the machine, several detail views of which are given herewith. As one might expect with the first machine of a new type, there are a few points of design whose modification would greatly increase the practical value or efficiency of the machine; as an example of this, we suggest that the worm on the irrigation pump shaft should be made of tubular formation, and be so mounted that it might ride freely on the shaft or, by means of a claw coupling, be caused to rotate at the same speed and in the same direction as the shaft.

As at present designed, this worm gear, by which the winding drum cross-shaft is driven, is in operation at all times that the irrigation pump is being driven. The gain in efficiency, as a result of the suggested alteration, might not be very considerable, but, at any rate, the placing of the claw coupling between the pump shaft and the worm, instead of between the cross-shaft and the hauling drum, would be more in consonance and keeping with the remaining details of a very practical design.

A machine of this type should have a large and useful field of operations, particularly amongst sugar planters, hop growers, and Colonial fruit growers, as well as in many other branches of agriculture, since it may not only be used as a tractor for hauling loaded wagons or agricultural implements, but as a portable power plant and as a means for spraying the ground or plant foliage with water, liquid manure, or insecticides. As a means of irrigation, the practice of spraying instead of flooding the roots is considered by many experts to be far more beneficial. The Gwyune turbine pump is capable of delivering 250 gallons of water per minute, at a pressure of from 60 to 701b. per square inch, and it is driven by the same engine which is used for propelling the machine along the ground. When employed for ploughing through clay soil, the tractor is capable of hauling a two-furrow plough cutting to a depth of 10 inches, whilst, when used in lighter soils, or cutting to a less depth, three or more furrows may be ploughed at the same time.

The engine is of the same type as that fitted to this maker's two-ton van chassis; it has four cylinders each 110mm. in diameter, and a pistonstroke of 130mni.: at 900r.p.m., it is capable of developing 28h.p. The crankshaft is provided with a bearing between each pair of cylinders, in addition to the two end bearings, and these are kept well lubricated by oil tinder pressure from a tank, the supply .0 which is maintained by a gear pump in the sump of the crankcase. From the crankshaft, the power is transmitted to a specially-designed gearbox by a leather-faced cone clutch of large diameter.

The gearbox provides for three forward speeds—of 2?1, five and nine miles an hour—and one reverse speed, and in the same casing the pump driving gears are also enclosed. The gearselecting levers are mounted on the side of the box, and are arranged so as to be operated by the driver's lefthand; of the three levers shown in the illustration of the gearbox, one is for application of the brake shoes to the drum on the main propeller ,shaft. The gearbox cleverly-arranged and substantially-constructed is of very compact design, and the shafts are mounted on Hoffmann ball bearings, as, indeed, is every shaft throughout the transmission system to the road wheels, pump or winding drum. The working parts are completely enclosed and run in oil baths. These refinementsball bearings and oil-baths for all the transmission gearing—are not to be found on any other agricultural motor with which we are acquainted; they certainly tend towards increased efficiency and life. The top shaft of the gearbox is directly connected to a worm-driven cross-shaft, on one end of which the winding drum is mounted; this drum is free to rotate independently of the shaft but may he locked thereto by means of a sliding claw coupling. The need for an easily-handled winding gear has not always been realised by builders of tractors, but in this respect Dennis Brothers, Limited, has not gone far astray. From the windingdrum worm the gearbox top-shaft extension is continued aft to the impeltors of the two-stage centrifugal Cvvynne pump.

The back axle is' one of the wormdriven typo which is used on all the Dennis machines ; in fact, many of its parts are interchangeable with those fitted on this maker's standard fourton lorry axle. Plate-steel road wheels are fitted, and the tires of these have diagonally-disposed pieces of angle steel riveted to them, in order to ensure a good grip on the unmade roads and soft ground upon which the tractor is intended to be used ; paddles, or spuds, of extra-deep section may be attached to the tires, when the machine is being operated on very soft ground. The use on the roads of wheels of the type illustrated is not permitted in this country : they will only he fitted to Dennis tractors for the Colonies and abroad, or for work on the land.

So far as the springing of the chassis is concerned, standard petrol-lorry practice has been followed, and, as may be seen from the front view of the tractor, the leading axle is quite straight and is one of Butler's patent type. The axle and the enclosed steering gear permit of a very wide angle of lock, thus enabling the driver to manceuvre the machine with ease in restricted areas. Another feature, and one that will be appreciated by Colonial users, is the large amount of clearance between the ground and the lowest detail between the wheels; the tractor might be driven over boulders of considerable size without doing any damage to a vital part.

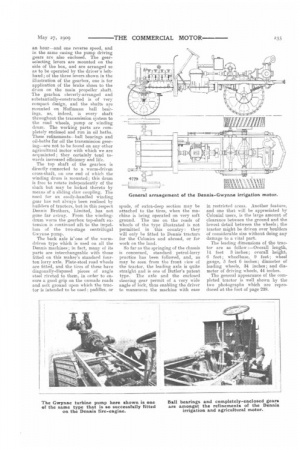

The leading dimensions of the tractor are as follow :—Overall length, 14 feet 3 inches; overall height, 6 feet; wheelbase, 9 feet; wheel gauge, 5 feet 6 inches; diameter of leading wheels, 34 inches; and diameter of driving wheels, 44 inches. The general appearance of the completed tractor is well shown by the two photographs which are reproduced at the foot of page 238.
